| Product: | ASTM Titanium & Titanium Alloy Ring | Grade: | ASTM B348, ASTM F136, ASTM F67, AMS 4928, Etc. |
|---|---|---|---|
| Material: | Gr.1, Gr.2, Gr.4 ,Gr.5, Gr.7, Gr.9, Gr.12, Gr.23, Etc. | Shape: | Round, Ring |

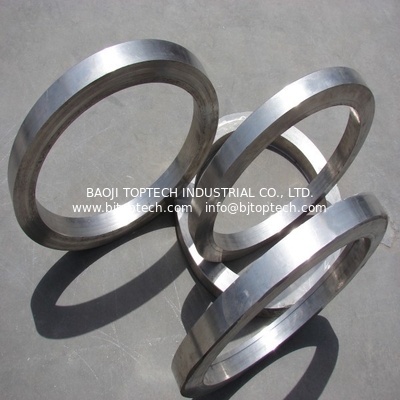

Titanium & Titanium Alloy Ring
| Specifications | |||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
Titanium Alloy ring
Materail:TA0,TA1,TA2,TA3,TA9,TA10,TC4
Size: Outer / Inner / Height / Thickness
200~400 / 100~300 / 35~120 / 40~150
>400~700 / 150~500 / 40~160 / 40~250
700~900 / 300~700 / 50~180 / 40~300
>900~1300 / 400~900 / 70~250 / 40~400
Titanium Blind Flange and Titanium Weld Neck Flange
Standard ASME/ANSI B16.5, DIN 2630-2633, BS etc.
Grade Titanium Commercially Pure and Alloys (GR 1, GR 2, GR 5, GR 7, GR 9, GR 12 )
Type: PL, SO, WN, IF, SW, TH, PJ/RJ, BL, BL(S)
Size: DN 15 ~ DN 2500
Pressure: PN 2.5 ~ PN 160 / Class 150 ~ Class 2500
Surface: RF, M, FM, T, G, RJ etc.
Applications:
Water works, Shipbuilding industry, Petrochemical and Gas industry, Power industry,
Valve industry and General pipes connecting projects etc.
Titanium screws
| Name | Size(mm) | Grade | Specification | |||
| Bolt | Nut | Washer | ||||
| Titanium screws | (M1.6-M20)* Length(3-160)mm |
M3-M30 | M4-M16 | Gr1,Gr2, Gr5,Gr7, Gr9,Gr12, Gr23 |
DIN912,DIN7991, DIN933,ASTM B381, ASTM B348,AMS4928, F136,F67,JIS,etc |
|
| Grade | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | bal |
| Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | bal |
| Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
Diameter |
0.1-0.3mm |
0.3-0.8mm |
0.8-2.0mm |
2.0-6.0mm |
Tolerance |
+/- 0.025 |
+/-0.04 |
+/-0.05 |
+/-0.10 |
Length |
200-500mm |
500-1000mm |
1000-2000mm |
&2000mm |
Tolerance |
+/-1.0 |
+/-1.5 |
+/-2.0 |
+/-2.5 |
Grade |
Tensile Strength (min) |
Yield strength 0.2%Offset |
Elongation in 2in.Or 50mm % (min) |
|||||
Min |
||||||||
Ksi |
Mpa |
Ksi |
Mpa |
|||||
Gr1 |
35 |
240 |
20 |
138 |
20 |
|||
Gr2 |
50 |
345 |
40 |
275 |
18 |
|||
Gr3 |
65 |
450 |
55 |
380 |
18 |
|||
Gr5 |
130 |
895 |
120 |
828 |
10 |
|||
Gr7 |
50 |
345 |
40 |
275 |
18 |
|||
Gr12 |
70 |
483 |
50 |
345 |
18 |
|||
Machining Process:
2. Applications
Titanium and Titanium alloy can be used in aircraft engines and parts, chemical equipment parts
(reactors, pipes, heat exchangers and valves, etc.). Petroleum Industry, Nuclear Power Industry,
Marine Industry, Electrolytic Industry etc.
Why Choose Us
Premium Quality
All the products are mill certified and 100% traceable from mill processing through melt source to maintain quality control requirements. Third Party Inspectation.
Competitive Price
Working from titanium sponge and finishing the raw material melting, milling, drawing, cutting, packaging in house for most products, this makes our prices much more competitive as the middleman is cut out. And our cooperated forwarder and courier charge us reasonable costs for goods delivery.
Superior Serviceand After-Service
Quick response and on-time delivery. We also offer value-added processing such as welding, drilling, surface treatment and customized cutting.
