Product Details:
Payment & Shipping Terms:
|
| Model: | Walk T Hrough Metal Detector | Detection Zone: | 6 Zones |
|---|---|---|---|
| Dispaly: | LED Display | LED Location Gatepost: | Without |
metal detector,metal detectors,metal detection machine,walk through metal detector,metal detector door,door frame metal detector,metal detection door, walk through metal detector door,walk t hrough detector door, detector door,Archway Metal Detector Door,metal detector gate,metal detection gate,handle hold metal detector,handle metal detector,portable metal detector,electronic metal detector,security metal detector

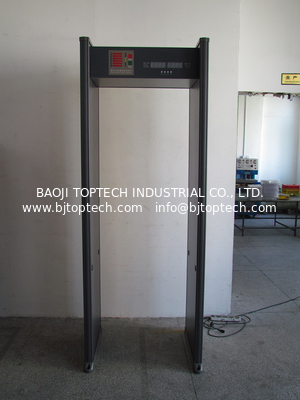

JLS-100 (6 Zones/LED pannel/No LED alarm bar)
Feature
●The walk-through metal detector is divided into 6parts exploring area, according to the nature structure of human being.
●LED display panel with button operation design.
●Password-protected: only allow professionals to operate.
●Operation in both Chinese and English, easy and convenience.
●Using the unitary frequency stimulating technique compiling with well- mixed vertical magnetic field intensity, JLS-100 can also eliminate the specified section, which is hard to inspect or cannot inspect.
●With the special property of quakeproof and no interference, it will work precisely even when the detector is shaking.
●With 100 grades of inspecting sensibilities. When set to the highest grade, the machine can check out a metal small as a paper clip.
●With the electromagnetic compatible design, the detector can avoid the electromagnetic interference.
●Every detector can work at one time in different frequencies even be placed side by side.
●Fast scan power that can support 60~70 people crossing it in just one minute, and it would be even more faster when no special situation occurs.
●The warming time can be easily adjusted.
●No harm occurs: it’s safe to cardiac pacemaker, expectant mother, magnetic disk, tapes and video etc.
●Our product applies to all the international safe standards.Approval CE.
Technology parameters:
The main power: 90V~250V 50/60HZ
Power consumption: 35 W
Working environment: -20 Celsius degrees ~ 45 Celsius degrees
Net weight: around 90kg
Gross Weight : around 95kg
Frequency: free to adjust according to the specify situation
Channel Size: 2010 * 710 * 500mm
Packing Size: 2200 * 655 * 200mm (door) ;780 * 462 * 280mm (host)
Technology standards:
Applying to:EN60950/EN50081-1/EN50082-1/GB15210-2003
| Technical Parameters | |
| Power Supply | 220V/AC |
| Power | <30V |
| External Dimension | 2200mm(H)*820mm(W)*550mm(D) |
| Passageway Dimension | 2000mm(H)*700mm(W)*550mm(D) |
| Work environment | -20°C- +45°C |
| Standard | GB15210-2003<WALK THROUGH METAL DETECTOR> |
| Standard configuration | |
| Main Case | ONE Unit |
| Left Probe | ONE Unit |
| Right Probe | ONE Unit |
| Power Line | ONE Unit |
| Screws | Eight Unit |
| Instruction |
ONE Unit (Including one Certificate of Quality & Guarantee Repair List) |
