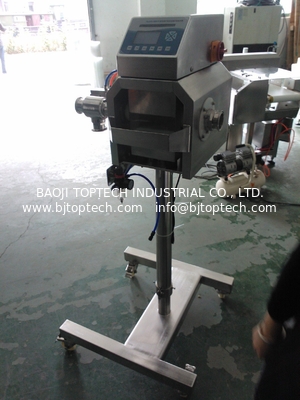

Pipe Metal detector JL-IMD-L50 for meat paste,jam,sauce,milk inspection

Characteristics:

▲Adapt phase discriminating technology that can efectively refrain product effect;

▲Adapt advanced DSP technology and leading intelligent algorithm which can improve detection

Sensitivity and promote stability of the machine;

▲Design for detection and separation of metal containants from pumped,liquid and paste products,

▲LCD display, English operation menu;

▲Auto-learning function contributes toautomatically choose suitable working parameters according to different products;

▲Reliable rejection of contarninants is guaranteed by the use of quick value according to different products characterstics

▲Easy to integrate in pipeline system bu quick connnectors.

▲Memory funcion for registering various products;

▲High sensitivity

▲Made of stainless steel,fairly good waterproof ability

Application:

The equipment is widely used in james, meat paste,glazed,milk,chocolate,sauce picklesetc between pump and filling station etc……

Technical  Parameter :

Diameter:                  50

Sensitivity Feφ(mm):         0.5

Sensitivity SUS316φ(mm):    1.2

Alarm method :   Sound and light alarm

Reject:          When detecting metal reject automatically

Presure requirment:        ≧ 1.6Mpa

Environment:     Temperature 10-40 C;Humidity less than 85%

(Avoid freezing condensation)

Power: 220V/110V   AC
