|Fuction:||Metal Detection;weight Sorting||Name:||Metal Detector,check Weigher|
|Model:||High Accuracy Model||Inspection:||For Small Packed Product Weight Less 5kgs|
|HS Code:||85437091||Alarm:||Pilot Lamp Flash With Alarm And Conveyor Stop|
|Auto Rejection:||By Customer Optional|
Metal detector,metal detectors machine,industrial metal detector,food metal detector,meat metal detector,chicken metal detector,fish metal detector,toy metal detector,rice metal detector,wheat flour metal detector,bread metal detector,cookie metal detector, tunnel metal detector,digital metal detectors machine,belt metal detector,conveyor metal detectors machine,metal detection machine,detect metal,check metal,find metal,free fall metal detector,pipe metal detector,gravity metal detector

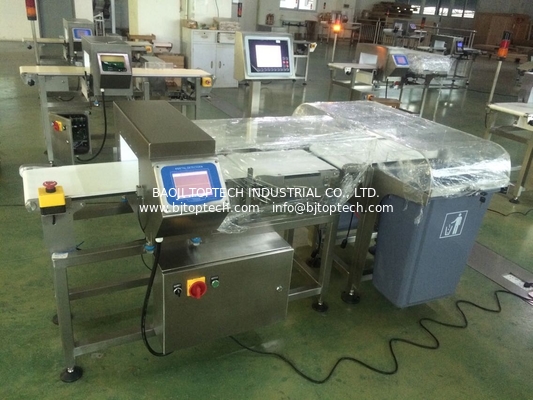

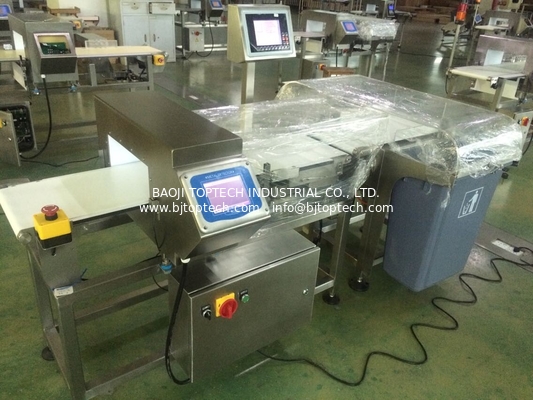

Combined metal detector and weight checker
Performances and characteristics:
1. Advanced dynamic weighing and digital processing system is used for quick and stable measurement.
2. A variety of anti-interference measures have a very strong suppression effect to noise and outside interferences.
3. Large-screen display, simple to operate, all test information can be seen simply at a glance.
4. Ingle-button locking modular transmission device, quick assembling and disassembling, simple and easy belt adjustment.
5. All-stainless steel framework, in line with the hygiene requirements.
6. Can be used to detect metal substance in a single product, and check whether the weight is in line with the set value, and so it is an economical and practical solution.
7. Standard configuration:
8. Data statistics function, data of nonconforming products can be recorded.
9. Self-diagnosis, automatic shutdown on fault condition.
10. Left-right swaying arm type automatic sorting device.
11. Protection grade: IP45 dustproof/waterproof standard.
Detection / check method: Electromagnetic induction / digital weighing sensor
Size: 330× 150mm
Metal detection precision: FE1.0mm SUS2.0mm
Sorting accuracy: ± 0.5 gram
Weighing range: 5 gram - 900 grams
Passing height: 110mm
Passing width: 280mm
Packing length:; 350mm
Conveyor belt speed: 10-45 m / min
Height above the ground: 740mm - 800mm
Weight: About 160 kilograms
|Detection tunnel height||Detection Sensibility|
|100mm||Fe 0.8mm||Non-fe 1.2mm||Sus 1.5mm|
|120mm||Fe 0.8mm;||Non-fe 1.2||Sus 1.5mm|
|150mm||Fe 1.0mm||Non-fe 1.5mm||Sus 2.0mm|
|200mm||Fe 1.0mm||Non-fe 1.5mm||Sus 2.0mm
Note: The actual measurement accuracy varies according to different articles to be detected.
Packaging size varies in accordance with the specific specifications of the products to be sorted and weighed.
