Product Details:
Payment & Shipping Terms:
|
| Model: | High Accuracy Model | Inspection: | Liquid Proudct,such Paste,sauce,jame |
|---|---|---|---|
| Auto Reject: | Installed | Detection Pipe Size: | 50mm;65mm;80mm |
| Name: | Metal Detector,metal Detections Machine | HS Code: | 85437091 |
| Alarm: | Pilot Lamp Flash With Alarm And Conveyor Stop | Auto Rejection: | By Customer Optional |
Metal detector,metal detectors machine,industrial metal detector,food metal detector,meat metal detector,jam metal detector,sauce metal detector,milk metal detector,digital metal detectors machine,belt metal detector,conveyor metal detectors machine,metal detection machine,detect metal,check metal,find metal,free fall metal detector,pipe metal detector,gravity metal detector
Characteristics:
3. Easy to be integrated in existing sealed pipe system
4. LCD display, Chinese&English operation menu;
5. Compact design, small occupied pipe length
6. Teflon food grade inner tube, high temperature and pressure resistance
7. Fast and accurate rejection valve, not only suitable for the high speed fluid, but also for slow viscous products, less material loss
8. Made of stainless steel, fairly good dustproof, waterproof ability. Easy to clearn.
Application:
High stability and sensitivity, suitable for the pump pressure fluid and semi-fluid product, jam, meat paste, sauce, juice, milk, liquid etc
Technical Parameter :

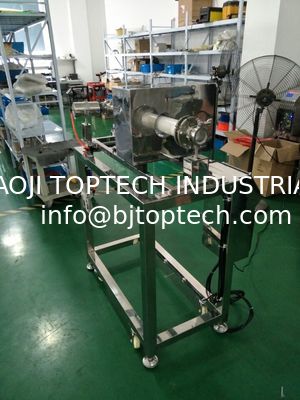

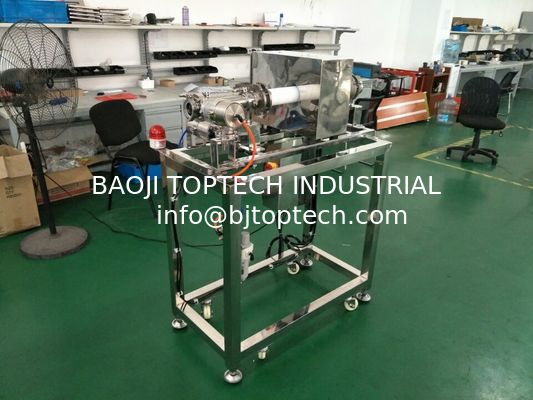

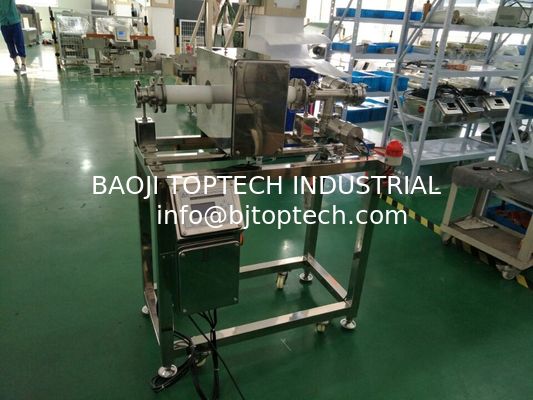

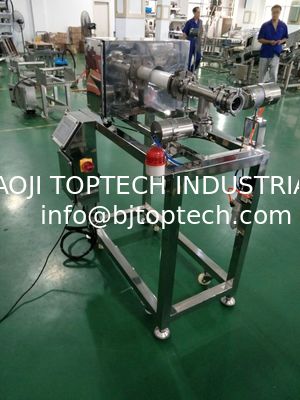

| Model: | JL-IMD-L50/L63/80 Pipeline Metal Detector |
| Detection Pipe diameter: |
50mm/63mm/80mm (50mm lightly frame design; 63mm,80mm heavy frame model) |
| Alarm method: | Alarm and lamp flash |
| Auto reject: | Automatically valve reject |
| Inner Pipe Material: | Food Grade Teflon Tube |
| Display/Operation Panel | LCD display with button design |
| Display/Operation Language |
English/Chinese/Spanish (Spanish Language by customer choose) |
| Pressure Requirements: | ≥0.5Mpa |
| Power: | AC110V/220V, 50-60hz |
| Net Weight: | 150kg-200kgs |
Detection sensitivity:
| Model | Detection Pipe |
Detection sensitivity(Φ) (Test by metal test card in the detection tube only) |
| L50 | 50MM | Fe≧0.5mm;Non-fe≧1.0mm;Sus≧1.2mm |
| L63 | 63MM | Fe≧0.6mm; Non-fe≧1.2mm;Sus≧1.5mm |
| L80 | 80MM | Fe≧0.8mm;Non-fe≧1.5mm;Sus≧2.0mm |
More info pls refer http://www.bjtoptech.com
