Product Details:
Payment & Shipping Terms:
|

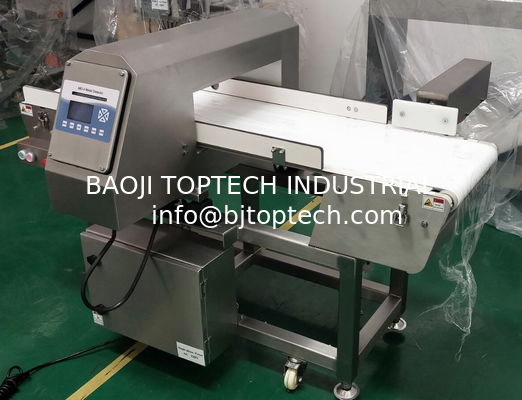

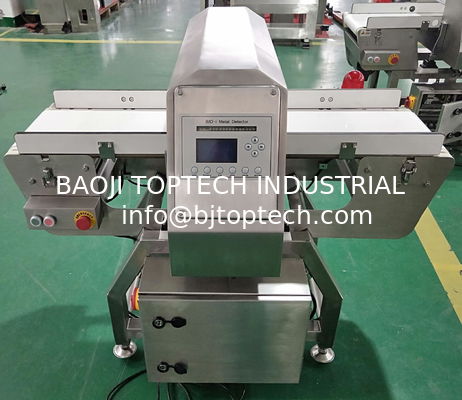

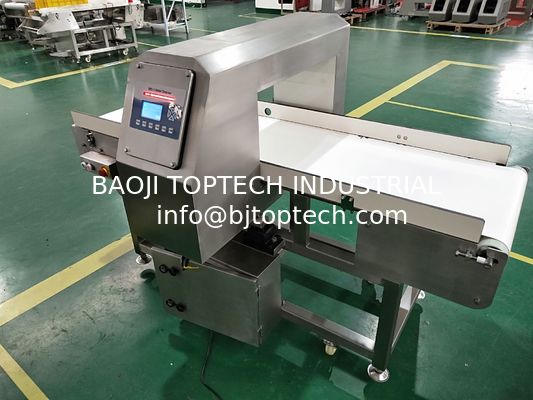

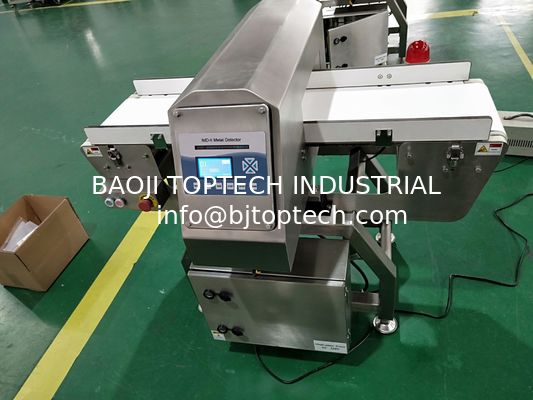

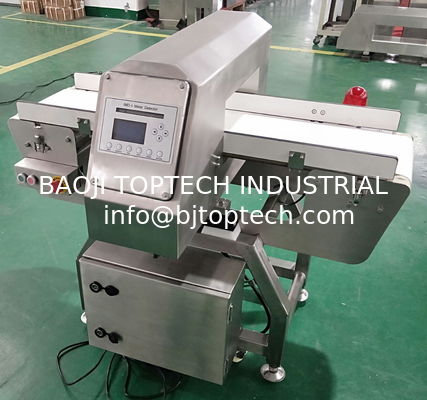

| Model: | Conveyor Metal Detector | Name: | Food Metal Detector |
|---|---|---|---|
| Detection Tunnel Size: | 400*150mm | Application: | For Foods,vegetable,fruit,seafood,fish,meat,rice,mills Inspection |
| Conveyor Belt: | PU Material Belt | Speed: | 25m/m |
| HS Code: | 85437091 | Model: | High Accuracy Model |
| Alarm: | Pilot Lamp Flash With Alarm And Conveyor Stop | Auto Rejection: | By Customer Optional |
Metal detector,metal detectors machine,industrial metal detector,food metal detector,meat metal detector,chicken metal detector,fish metal detector,toy metal detector,rice metal detector,wheat flour metal detector,bread metal detector,cookie metal detector, tunnel metal detector,digital metal detectors machine,belt metal detector,conveyor metal detectors machine,metal detection machine,detect metal,check metal,find metal,free fall pipe metal detector,tube metal detector, pipe metal detector,gravity tube metal detectors
Characteristics:
1. Small size structure design for small size and lightly product inspection.
2.Phase discriminating technology that can effectively refrain product effect;
3.Advanced DSP technology and leading intelligent algorithm improve the detection sensitivity.
4.Auto balance technology improve the working stability of machine.
5. Be able to detect out metals like iron, stainless steel, copper, gold, silver and aluminum, etc.
6.LCD display, Chinese&English operation menu;
7.Auto-setting function, automatically setting suitable working parameters according to different products;
8. Memory function support for 52 kinds of different products registering.
9, 4 level Password setting.
10 Simple conveyor structure, disassemble and assemble more convenient;
11 Special design of conveyor belt to avoid deviation;
12. Made of stainless steel, fairly good dustproof, waterproof ability. Easy to be clearned.
Application:
The equipment is widely used in Aquatic products,meat and poultry produtcs,preserved food,flour products,dried fruit,vegetables chemical materials,medical drugs,toys and primary products, etc……
| Model: | JL-IMD-3012 | |
| Detection tunnel width: | 300mm | |
| Detection tunnel height: | 120mm | |
| Conveyor belt width : | 260mm | |
| Max capacity: | 15kgs | |
| Motor output : | 200W-300W | |
| Speed(m/min): | 25m/m | |
| Display/Operation Panel | LCD display with button design | |
| Display/Operation Language |
English/Chinese/Spanish (Spanish Language by customer choose) |
|
| Alarm method: | Alarm and lamp flash to stop transfer | |
| Auto reject: |
auto pusher/swing arm /air blast /plate turn-over (by customer’s optional) |
|
| Conveyor belt: |
Food Grade PU belt (Modular Conveyor by customer’s optional) |
|
| Power: | AC110V/220V 50-60hz | |
| Net Weight:200-250kgs | 200kgs | |
| Detection tunnel height | Detection Sensibility | ||
| 100mm | Fe 0.8mm | Non-fe 1.2mm | Sus 1.5mm |
| 120mm | Fe 0.8mm; | Non-fe 1.2 | Sus 1.5mm |
| 150mm | Fe 1.0mm | Non-fe 1.5mm | Sus 2.0mm |
| 200mm | Fe 1.0mm | Non-fe 1.5mm | Sus 2.0mm |
