| Product: | Titanium Alloy Rods | Size: | Dia.: 5mm-300mm (0.2"-12"), Length: 50mm-6000mm (2.0"-236") |
|---|---|---|---|
| Grade: | ASTM B348, ASTM F136, ASTM F67, AMS 4928, Etc. | Material: | Gr.1, Gr.2, Gr.4 ,Gr.5, Gr.7, Gr.9, Gr.12, Gr.23, Etc. |
| Shape: | Rod, Straight,round |

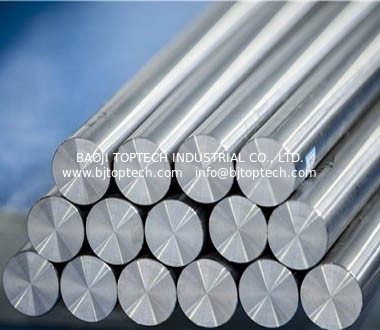

Titanium bar/ Titanium and Titanium alloy rod
Standard: ASTM, AMS, GB/T
Specifications :
Grade:Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23
Size: dia1.0-dia350mm (+1/-1mm)*4000mm
OD:2mm-219mm
WT:0.3mm-15.24mm
L:with in 18Meters
Standard:ASTM B337,ASTM B338,ASTM B861
Surface Treatment: polished or according to customer's requirement.
Applications:
Titanium and Titanium alloy can be used in aircraft engines and parts, chemical equipment parts
(reactors, pipes, heat exchangers and valves, etc.). Petroleum Industry, Nuclear Power Industry,
Marine Industry, Electrolytic Industry etc.
| Product | Size(mm) | Condition | Grade NOS | Specification |
| TA2 Grade2 Titanium Rods/Bars |
Φ(30~400)*L≤5000 | Forged Bars | TA2 | GB/T,ASTM, ASME,AMS, ISO,JIS,MIL |
| Φ(8~60)*L≤4000 | Rolled Bars |
| Product | Titanium and Titanium alloy rod |
| Size | Dia.: 5mm-300mm (0.2"-12"), , Length: 50mm-6000mm (2.0"-236") |
| Material | Gr.1, Gr.2, Gr.4 ,Gr.5, Gr.7, Gr.9, Gr.12, Gr.23, etc. |
| Standard | ASTM B348, ASTM F136, ASTM F67, AMS 4928, etc. |
| Surface | Polished |
| Shape | Rod, Straight |
Application
Titanium and Titanium alloy can be used in aircraft engines and parts, chemical equipment parts
(reactors, pipes, heat exchangers and valves, etc.).
Chemical components of each grade
| Grade | Fe% | C% | N% | H% | O% | Al% | V% | Mo% | Ni% | Pd% | Ti |
| Gr1 | 0.2 | 0.08 | 0.03 | 0.015 | 0.18 | -- | -- | -- | -- | -- | BAL. |
| Gr2 | 0.3 | 0.08 | 0.03 | 0.015 | 0.25 | -- | -- | -- | -- | -- | BAL. |
| Gr3 | 0.3 | 0.08 | 0.05 | 0.015 | 0.35 | -- | -- | -- | -- | -- | BAL. |
| Gr4 | 0.3 | 0.08 | 0.05 | 0.015 | 0.40 | -- | -- | -- | -- | -- | BAL |
| Gr5 | 0.25 | 0.08 | 0.03 | 0.015 | 0.02 | 5.5 - 6.75 | 3.5 - 4.5 | -- | -- | -- | BAL |
| Gr7 | 0.3 | 0.08 | 0.03 | 0.015 | 0.25 | -- | -- | -- | -- | 0.12 - 0.25 | BAL. |
| Gr9 | 0.25 | 0.08 | 0.03 | 0.015 | 0.15 | 2.5 - 3.3 | 2.0 - 3.0 | -- | -- | -- | BAL. |
| Gr12 | 0.3 | 0.08 | 0.03 | 0.015 | 0.25 | -- | -- | 0.2 - 0.4 | 0.6 - 0.9 | -- | BAL. |
| Gr23 | 0.3 | 0.08 | 0.03 | 0.015 | 0.13 | 5.5 - 6.75 | -- | -- | -- | -- | BAL |
Mechanical characteristics of each grade
| Grade | Tensile Strength (min) | Yield Strength 0.2% Offset | Elongation in 2 inch or 50mm % (min) | ||
| KSI | MPa | KSI | MPa | ||
| Gr.1 | 35 | 240 | 20 - 45 | 138 - 310 | 24 |
| Gr.2 | 50 | 345 | 40 - 65 | 275 - 450 | 20 |
| Gr.3 | 65 | 450 | 55 - 80 | 380 - 550 | 18 |
| Gr.4 | 80 | 550 | ≥70 | ≥483 | 15 |
| Gr.5 | 138 | 950 | ≥128 | ≥880 | 14 |
| Gr.7 | 50 | 345 | ≥40 | ≥275 | 24 |
| Gr.9 | 125 | 860 | ≥105 | ≥725 | 10 |
| Gr.12 | 70 | 483 | ≥50 | ≥345 | 18 |
| Gr.23 | 125 | 860 | ≥115 | ≥790 | 15 |
Processing machine:
Machining Process:
2. Applications
Titanium and Titanium alloy can be used in aircraft engines and parts, chemical equipment parts
(reactors, pipes, heat exchangers and valves, etc.). Petroleum Industry, Nuclear Power Industry,
Marine Industry, Electrolytic Industry etc.
Why Choose Us
Premium Quality
All the products are mill certified and 100% traceable from mill processing through melt source to maintain quality control requirements. Third Party Inspectation.
Competitive Price
Working from titanium sponge and finishing the raw material melting, milling, drawing, cutting, packaging in house for most products, this makes our prices much more competitive as the middleman is cut out. And our cooperated forwarder and courier charge us reasonable costs for goods delivery.
Superior Serviceand After-Service
Quick response and on-time delivery. We also offer value-added processing such as welding, drilling, surface treatment and customized cutting.
